Adjust individual table column widths?

[jimmy_382837]

is there a way to adjust the individual column widths on a table in custom.css?

i am using the MMM-openweathermapforecast, which is fantastic module.

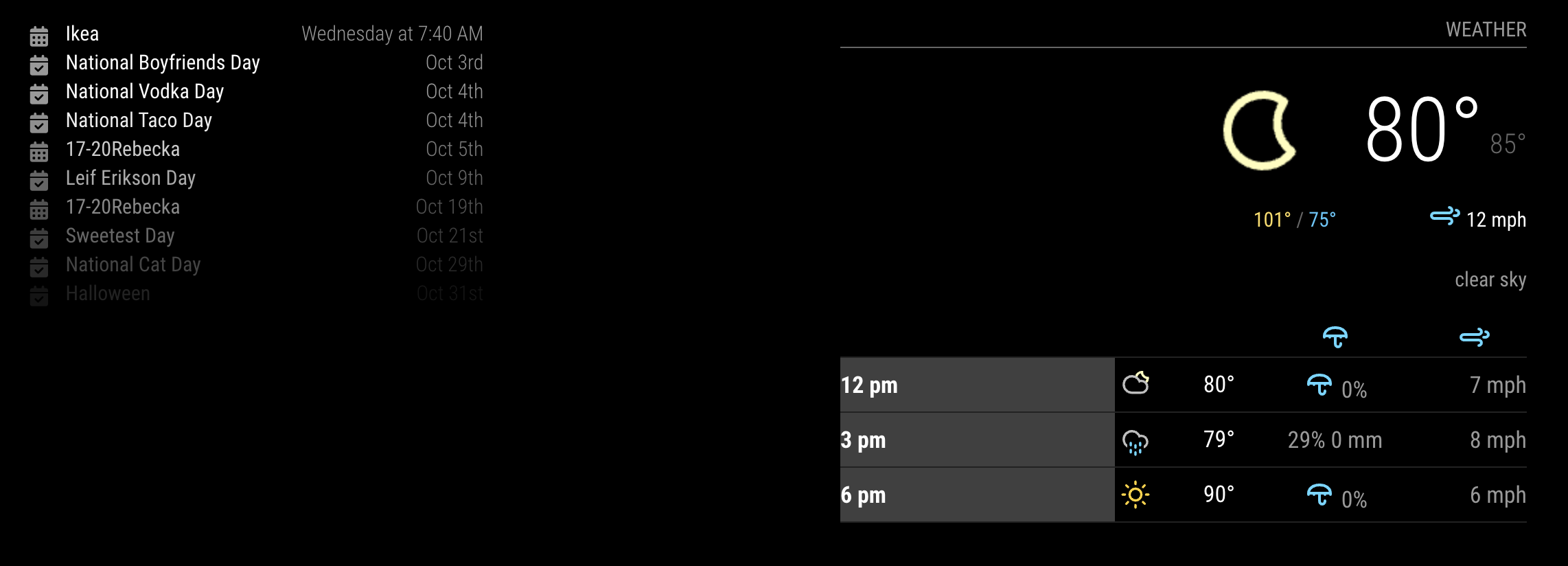

the hourly forecast is in a little table as pasted below, and i’m trying to adjust the individual column widths so that there’s no linebreak when the text exceeds the width.

i tried table-layout: auto and table-layout: fixed with a width %, but both seem to either do nothing, or adjust all column widths to the same thing. is there a way to say col 1 should be X%, col 2 should be y%, and so on?

[sdetweil]

@jimmy_382837 I think it takes additional html, not just styles

https://stackoverflow.com/questions/928849/setting-table-column-width

[MMRIZE]

@jimmy_382837
What is your config now for your result? I cannot guess your configs.

[jimmy_382837]

@MMRIZE my current config looks like this

{
	module: "MMM-OpenWeatherForecast",
	position: "top_right",
	config: {
		apikey: "xx",
		latitude: 30.266666,
		longitude: -97.733330,
		requestDelay: 1500,
		units: "imperial",
		forecastHeaderText: "",
		forecastLayout: "table",
		hourlyForecastTableHeaderText: "",
		hourlyForecastInterval: 3,
		  extraCurrentConditions: {
				highLowTemp: true,
				precipitation: true,
				sunrise: true,
				sunset: true,
				wind: false,
				barometricPressure: false,
				humidity: false,
				dewPoint: false,
				uvIndex: false,
				visibility: false
				},
			hourlyExtras: {
				precipitation: true,
				wind: true,
				barometricPressure: false,
				humidity: true,
				dewPoint: false,
				uvIndex: false,
				visibility: false
				},
		showDailyForecast: false,
		}
},

i am trying to edit the column widths on the hourly forecast table. i have tried all of the below in the custom.css, but none seem to work.

.MMM-OpenWeatherForecast .forecast-container.hourly {
  table-layout: fixed;
}



.MMM-OpenWeatherForecast .wrapper.table .forecast-container .forecast-item {
    table-layout: fixed;
}


.MMM-OpenWeatherForecast .wrapper.table .forecast-container .forecast-item .forecast-icon-container {
    width: 30px;
}

ideally, i’d like to set a specific width for each column. e.g., the time is 30 px, conditions are 35 px, temperature is 45 px, and so on.

[sdetweil]

@jimmy_382837 did u see this from the link I posted…

note that the TH for the columns MUST has a class
OR
you have to the the :nth-child() type selector

tr:nth-child(1)

would be the same element as the

<th class="from"...>

https://www.w3schools.com/cssref/css_selectors.php

[MMRIZE]

I haven’t examined the rendered HTML yet, but hardcoded style attributes in HTML code are prior than CSS.
In case; You should modify source code of the module to change the result. (Or consider to use monkey-patch)

[MMRIZE]

@jimmy_382837
@MMRIZE said in Adjust individual table column widths?:

I haven’t examined the rendered HTML yet, but hardcoded style attributes in HTML code are prior than CSS.
In case; You should modify source code of the module to change the result. (Or consider to use monkey-patch)

The rendered result is not hard-coded, so you can adjust it with only CSS.

This is an example. (Anyway, your config was not exactly matched with your previous screenshot…)

.MMM-OpenWeatherMapForecast .module-content {
  width: inherit;
  /* I don't know why, but it was defined as 300px, might be an issue when you adjust the dimension. so have to reset */
}

.MMM-OpenWeatherMapForecast,
.MMM-OpenWeatherMapForecast .wrapper {
  width: 500px;
  /* give a custom width to a module */
}

.MMM-OpenWeatherMapForecast .forecast-item .time {
  /* Some customizing for `time` cell for example.*/
  width: 200px;
  background-color: rgb(127 127 127/ 50%);
  color: white;
  font-weight: bold;
}
