Hey Guys,

I using and follow the MM Project since about 8 years. Finnaly I want to show you my Dasboard at the Kitchen. That are just Screenshots from the Serverpage… I also use a Mirror with a 27" Monitor.

I used the following Modules.

calendar_monthly
MMM-DWD-Pollen
MMM-MicrosoftToDo
MMM-OnThisDayWikiApi
MMM-RTSPtoWeb
MMM-EasyPix
MMM-MoonPhase
MMM-page-indicator
MMM-Touch
MMM-ApothekenNotdienst
MMM-EmbedURL
MMM-Multimonth
MMM-pages
MMM-WeeklySchedule
MMM-BackgroundSlideshow
MMM-Fuel
MMM-News-QR
MMM-PDFSlideshow
MMM-Worldclock
MMM-Breathwork
MMM-germanwordclock
MMM-Nixie-Clock
MMM-PirateSkyForecast
MMM-Year-Progress
MMM-CalendarExt3
MMM-GrafanaChart
MMM-octoprint
MMM-RAIN-MAP
MMM-DailyJuice
MMM-ioBroker
MMM-Remote-Control

@MZ-BER Thank you! You’re Welcome!

I’m using the MM as a server and just open Webpage in Chromium on Ubuntu. For this I using an Intel Nuc and 23" Dell Touch Monitor. I can share some more Pictures this evening.

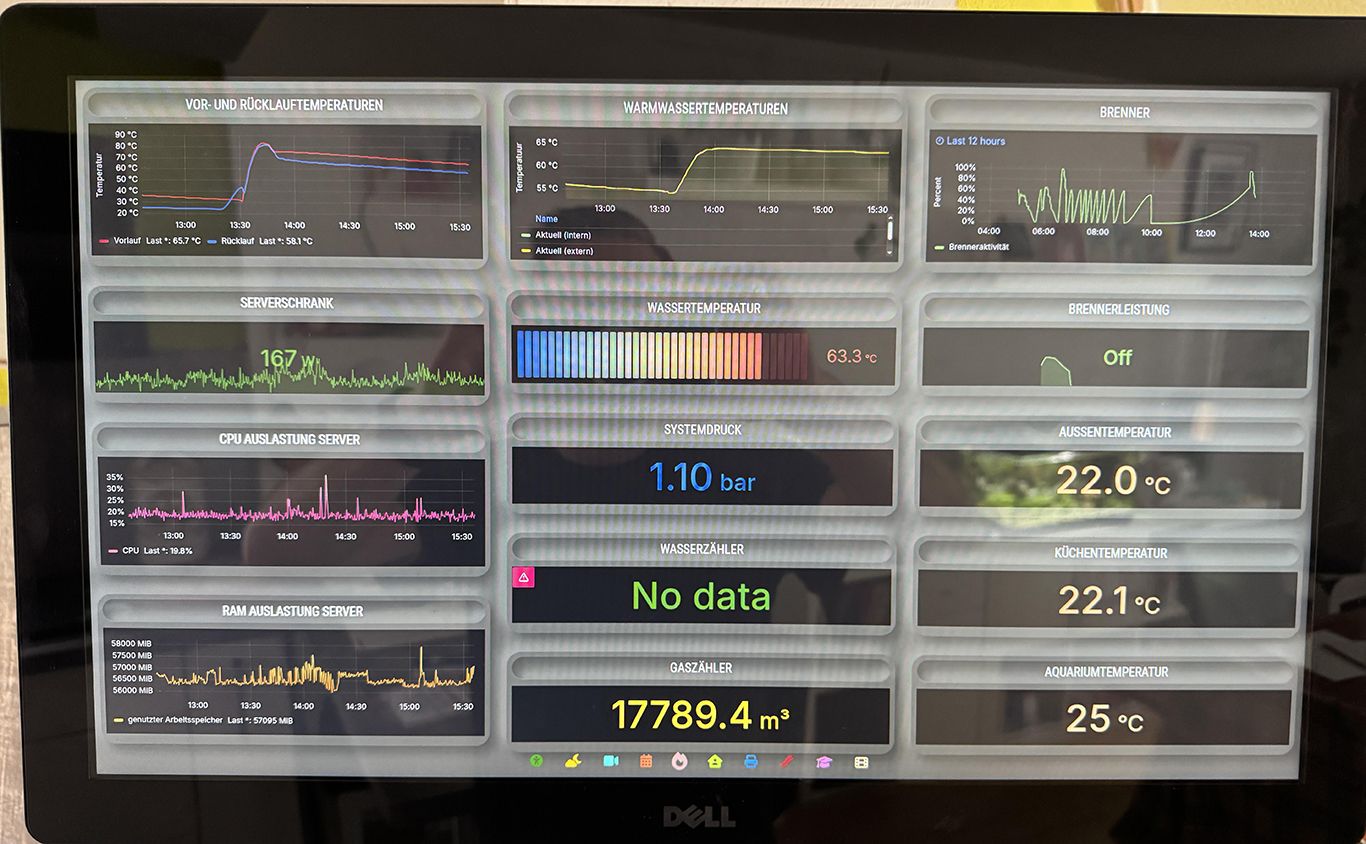

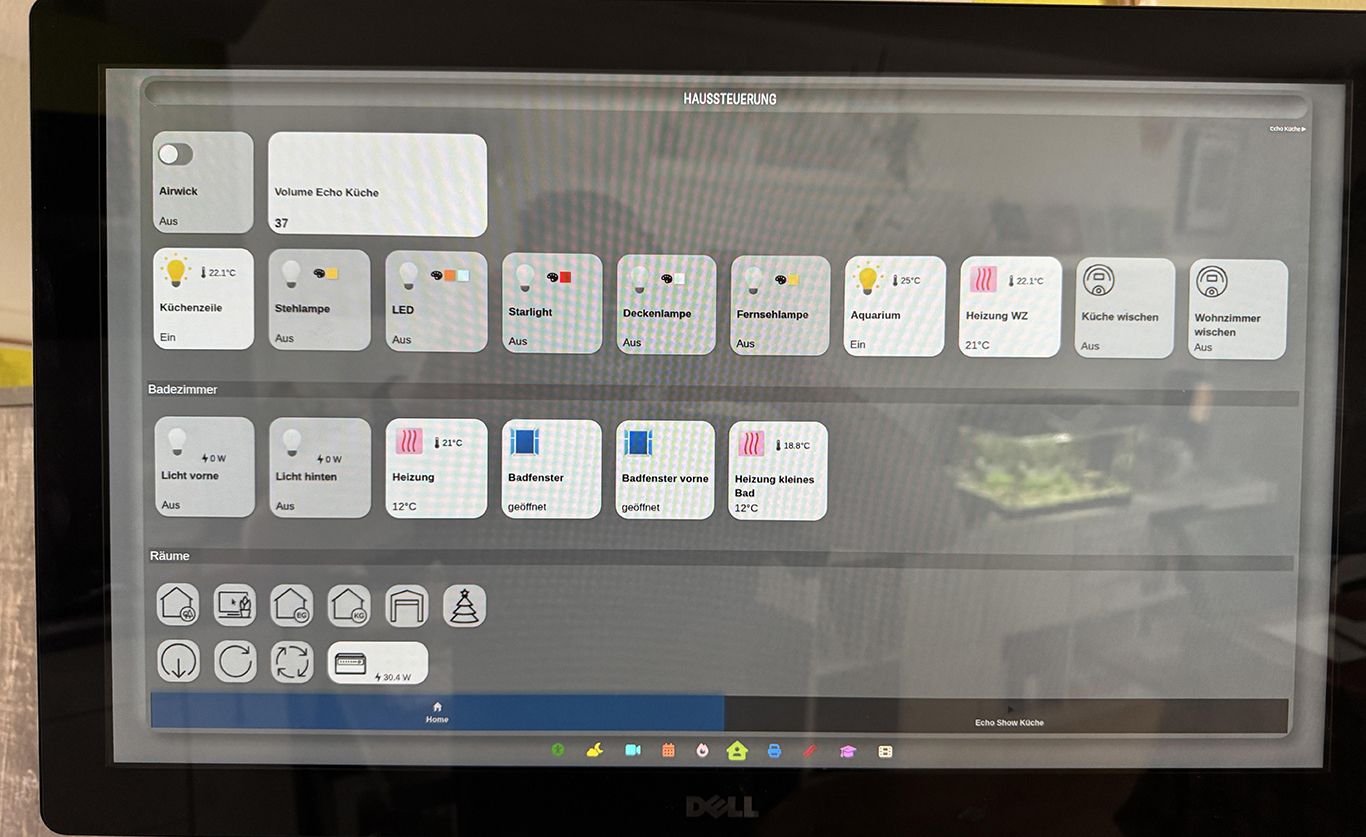

The SmartHome Control is an embeded Webpage I made with iQontrol from ioBroker and the Visualization is Grafana. Also as an embeded Webpage. Grafana takes the data from ioBroker.

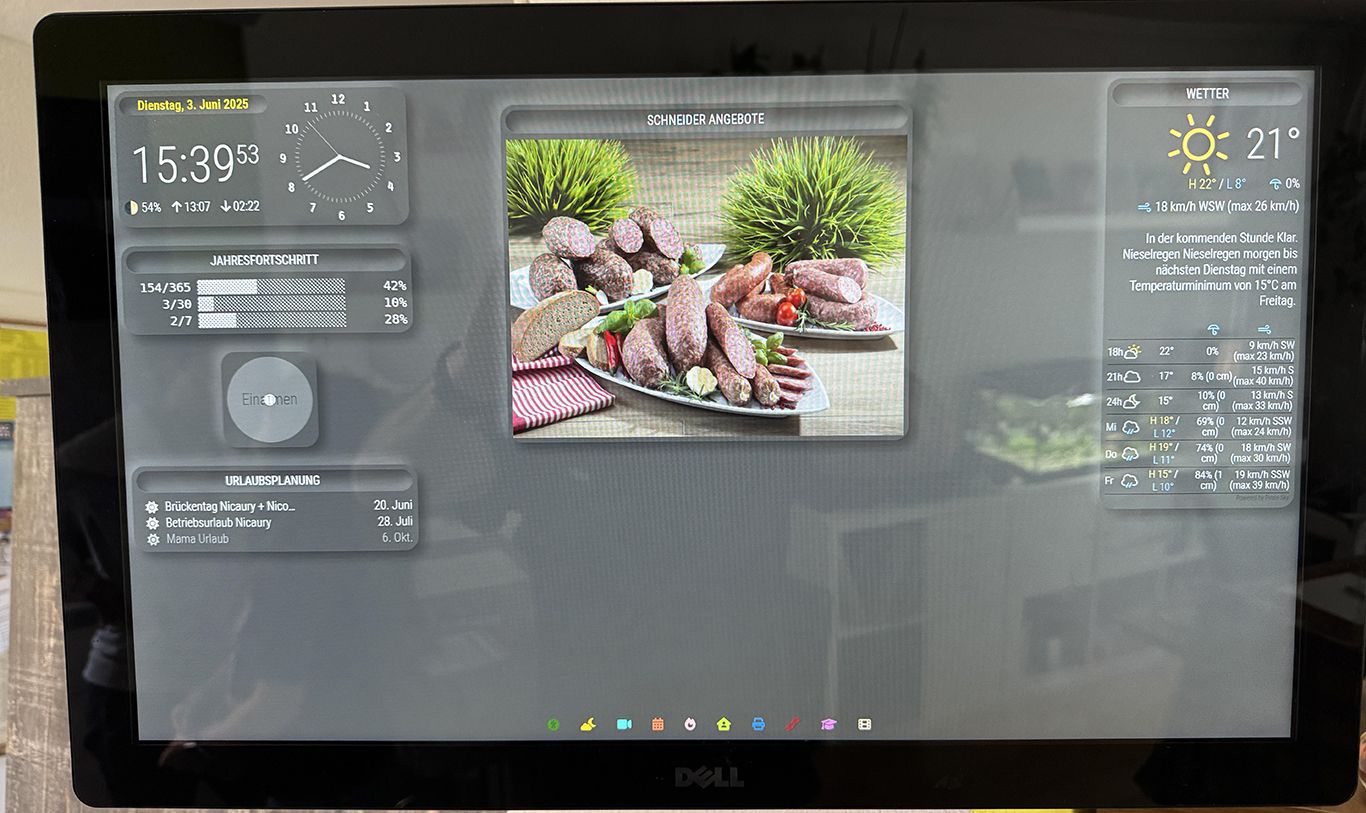

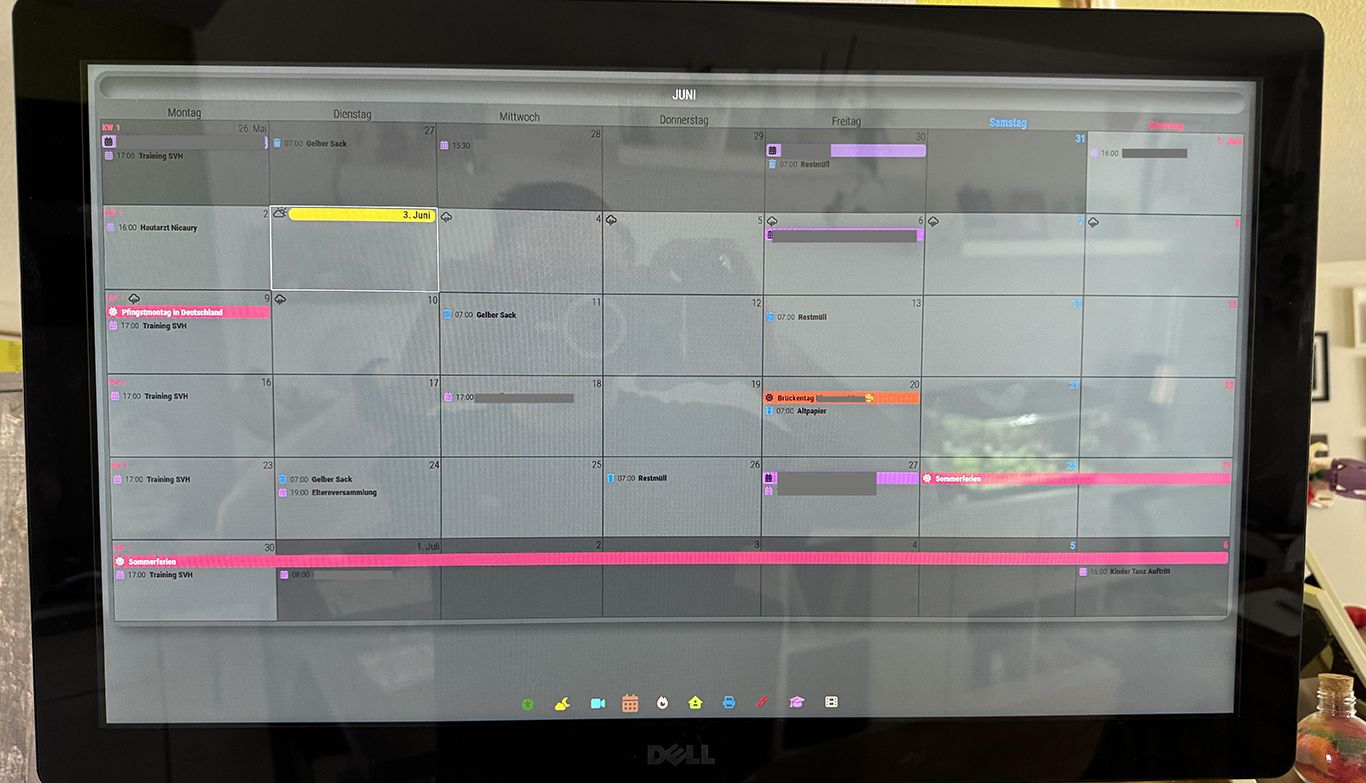

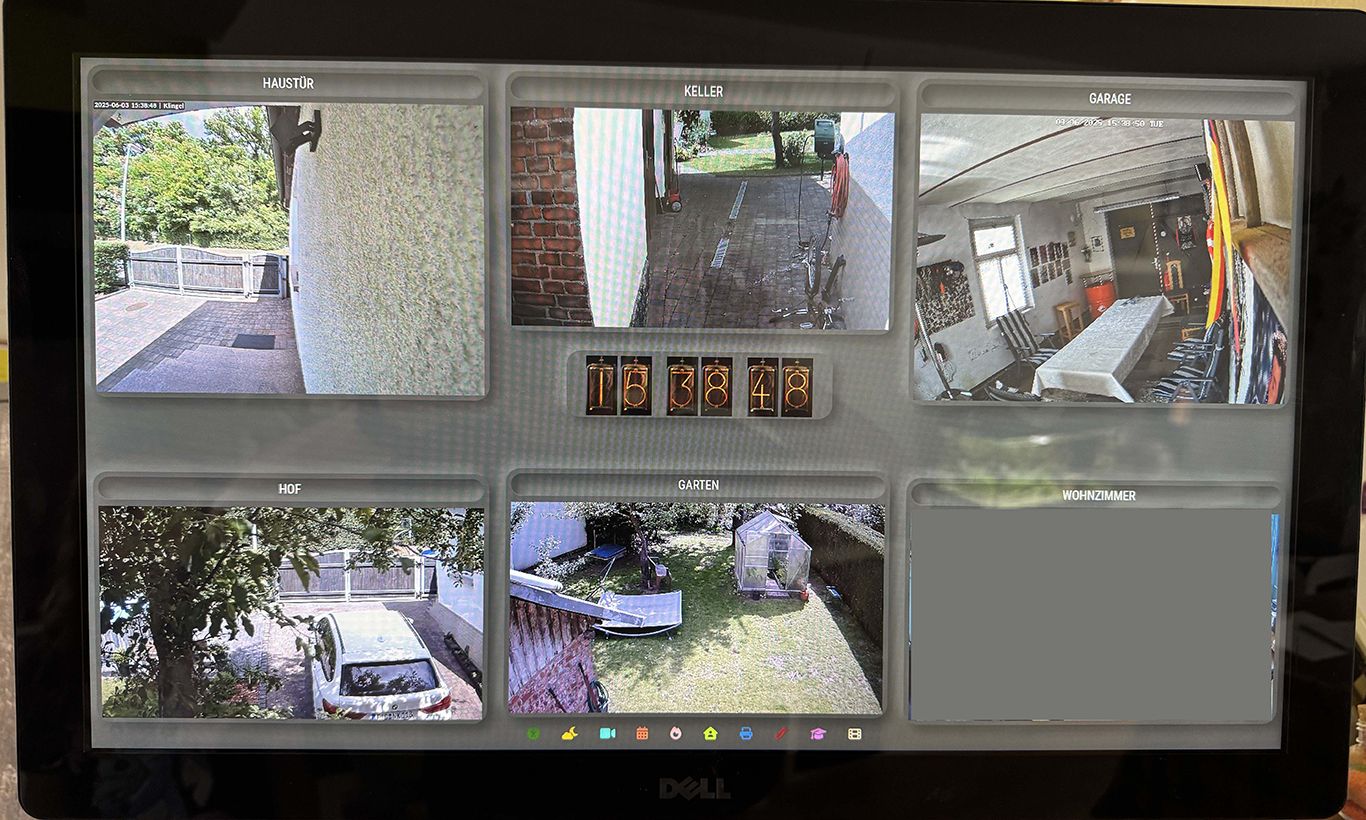

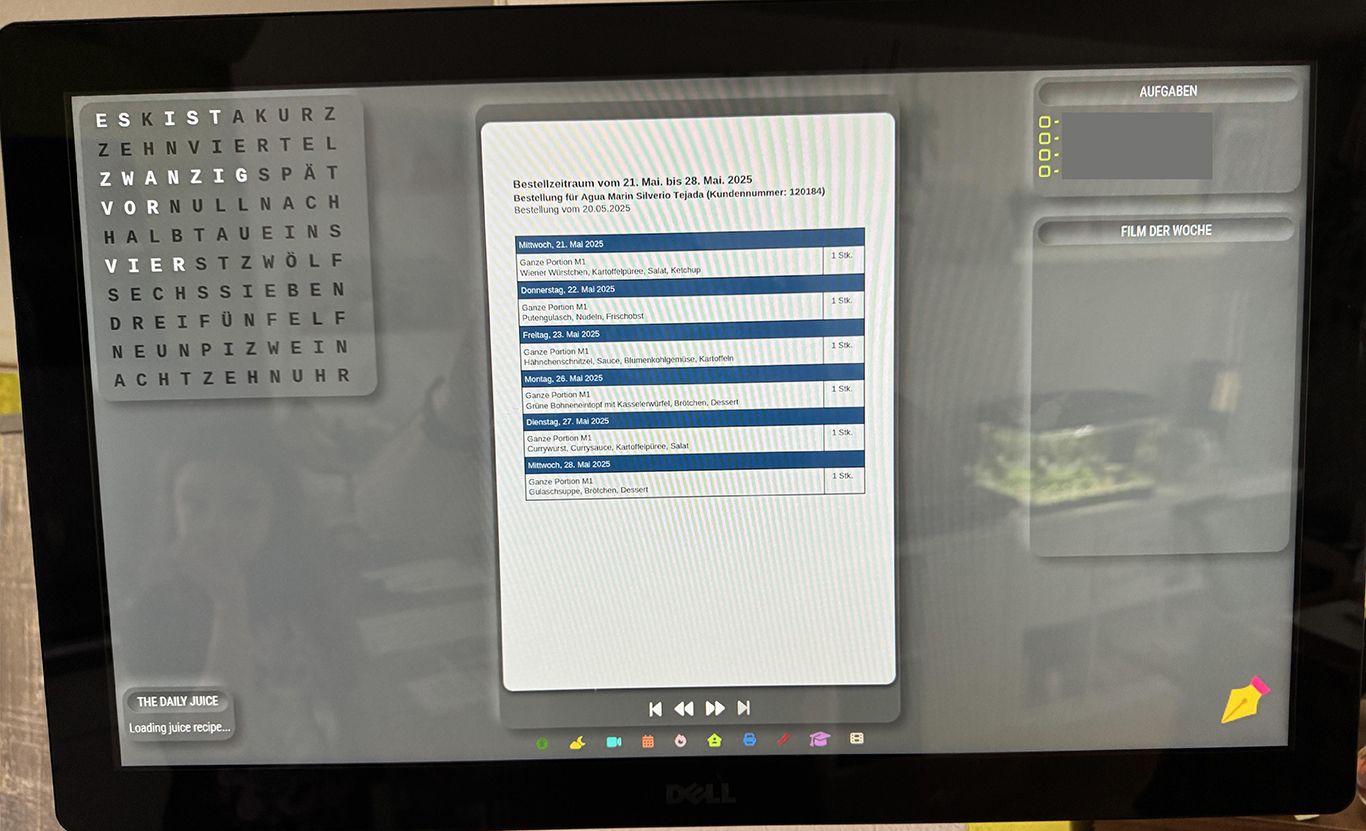

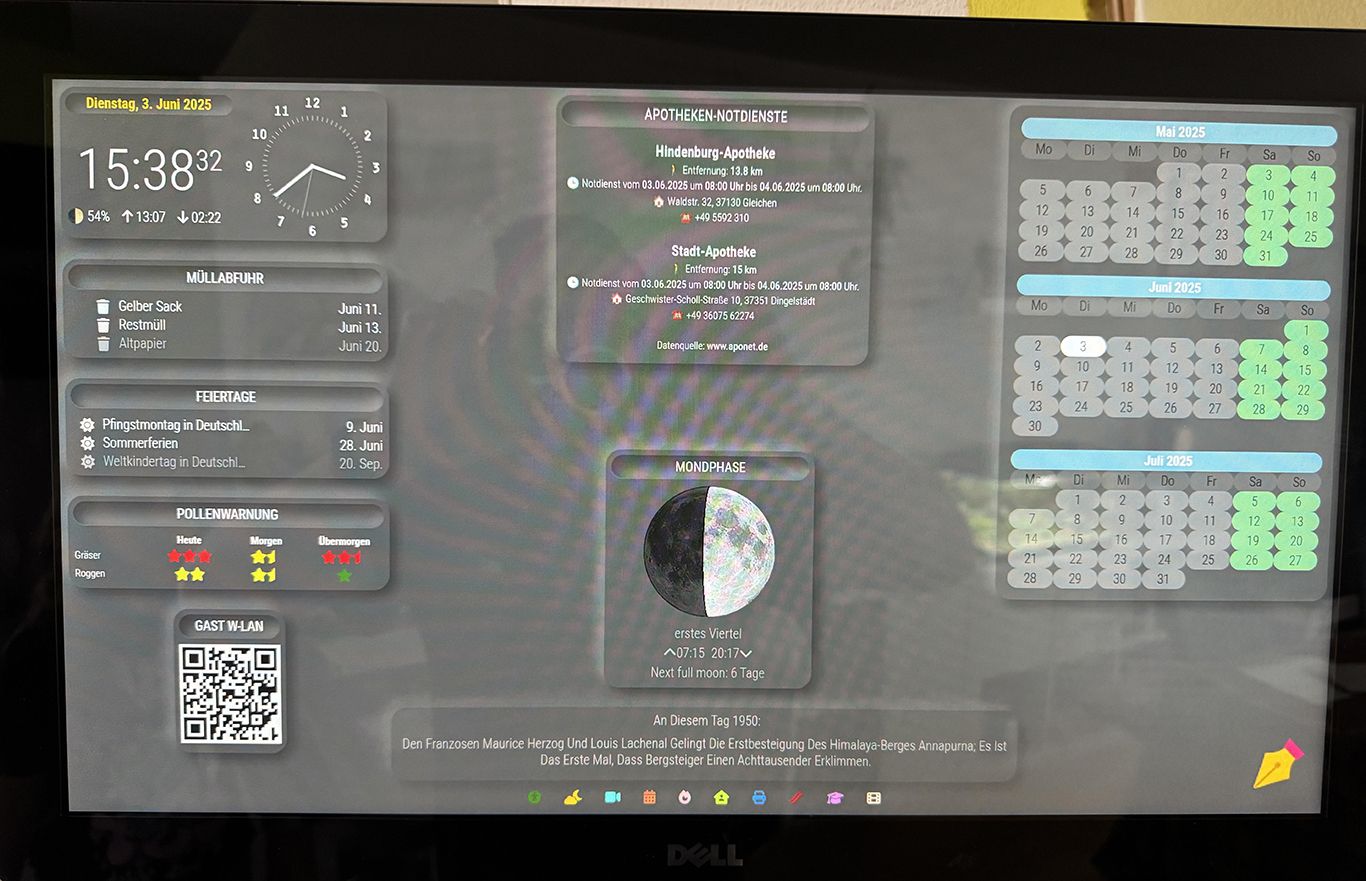

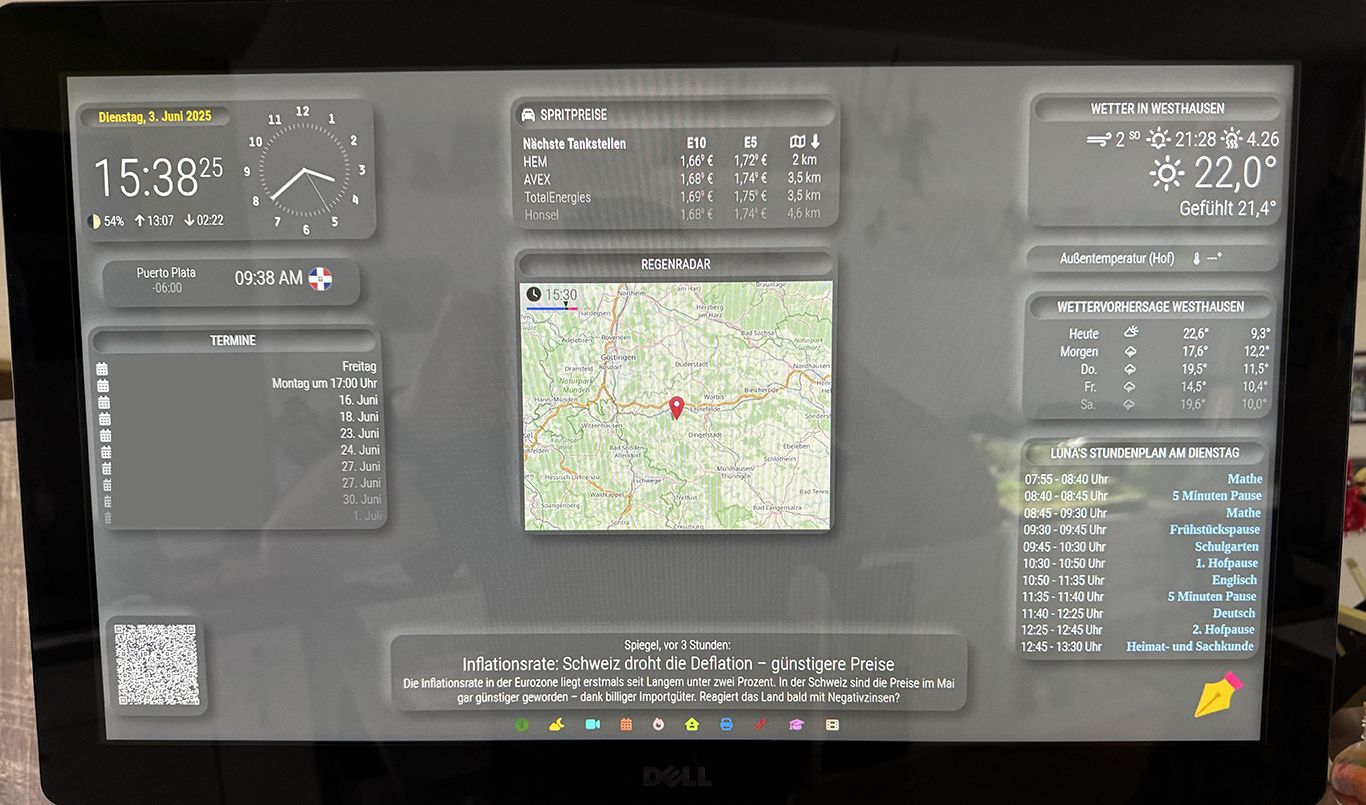

Here are some Pictures of the Screen (not only Screenshots)…

@sdetweil THX a lot! This fix is working… it is fading out and it’s showing the events at CX3…

@mumblebaj No, I don’t. I tried again and now it is working, but I don’t know why?! I’m not sure I think I made a mistake the first time I installed it.

Thank you for your help!

@BerkSmash1984 Thank You. I found a way to fix it with my custom css.

.juice-container {
  height: auto;
  width: 200px;
}
.juice-title {
  font-size: 20px;
  text-align: center;
  padding: 0px;
  margin-left:auto;
  margin-right:auto;
  position: relative;
}

Hey @lavolp3,

thank you for the nice module. Is there a way to change the header from ‘MMM-Soccer’ to smth else? I’ve tried to set the header in the config.js but then I have two header. My one an the ‘MMM-Soccer’ header. THX

Edit: I found a way. It’s not the finest solution but it works. I changed the header in the ‘MMM-soccer.njk’ file.

Hey @Isaac-the-Man,

is there a way to change the background color of the digits. I’m using the module at my Dashbord and the backround is grey. Thx

@sdetweil I think @seabass have to try.

Regards from Denmark.

Hey @seabass, it look’s good. I’m not sure but I think you need to install MMM-Remote-Control for sending notifications. Maybe @sdetweil can tell us more about this? Thanks.

@seabass Ok, do you have MMM-Remote-Control installed?
Can you share your config by the way?

@seabass For me the following cofiguration ist working fine with every Touch Display I’m using. (Surface, Dell Touch Monitor, HP AIO Touch)
I using this module. MMM-Touch and also MMM-Pages

{
			module: "MMM-Touch",
			position: "top_center",
			classes: "",
			    disabled: false,
			    config: {
				debug: false,
				useDisplay: false,
				autoMode: false,
				defaultMode: "default",
					gestureCommands: {
					  "default":{
							"TAP_1": (commander) => {commander.sendNotification("USER_PRESENCE", true);},
							"SWIPE_RIGHT_1": (commander) => {commander.sendNotification("PAGE_DECREMENT", null);},
							"SWIPE_LEFT_1": (commander) => {commander.sendNotification("PAGE_INCREMENT", null);},
							"SWIPE_DOWN_1": (commander, gesture) => {commander.sendNotification("ARTICLE_PREVIOUS")},
							"SWIPE_UP_1": (commander, gesture) => {commander.sendNotification("ARTICLE_NEXT")},
							"SWIPE_DOWN_2": (commander, gesture) => {commander.sendNotification("BACKGROUNDSLIDESHOW_PREV")},
							"SWIPE_UP_2": (commander, gesture) => {commander.sendNotification("BACKGROUNDSLIDESHOW_NEXT")},
							//"DOUBLE_TAP_1": (commander) => {commander.sendNotification("LOAD_NEXT_WALLPAPER", null);},
							"SWIPE_LEFT_2": (commander) => {commander.sendNotification('CX3_GET_CONFIG', {callback: (before) => {commander.sendNotification('CX3_SET_CONFIG', {monthIndex: before.monthIndex + 1,callback: (after) => {setTimeout(() => { commander.sendNotification('CX3_RESET') }, 60_000)}})}})},
							"SWIPE_RIGHT_2": (commander) => {commander.sendNotification('CX3_GET_CONFIG', {callback: (before) => {commander.sendNotification('CX3_SET_CONFIG', {monthIndex: before.monthIndex - 1,callback: (after) => {setTimeout(() => { commander.sendNotification('CX3_RESET') }, 60_000)}})}})},
				},
			}
		},
  },

@seabass said in Kitchen Touchscreen Dashboard:

I see you’re using the MMM-Touch and MMM-pages modules. Are you able to swipe to the next page configured with the MMM-pages module? Would you be able to share your module configuration for the MMM-Touch and MMM-pages modules as I’m unable to get the MMM-Touch module working with my setup. Thank you!

 {
			module: "MMM-Touch",
			position: "top_center",
			classes: "",
			    disabled: false,
			    config: {
				debug: false,
				useDisplay: false,
				autoMode: false,
				defaultMode: "default",
					gestureCommands: {
					  "default":{
							"TAP_1": (commander) => {commander.sendNotification("USER_PRESENCE", true);},
							"SWIPE_RIGHT_1": (commander) => {commander.sendNotification("PAGE_DECREMENT", null);},
							"SWIPE_LEFT_1": (commander) => {commander.sendNotification("PAGE_INCREMENT", null);},
							"SWIPE_DOWN_1": (commander, gesture) => {commander.sendNotification("ARTICLE_PREVIOUS")},
							"SWIPE_UP_1": (commander, gesture) => {commander.sendNotification("ARTICLE_NEXT")},
							"SWIPE_DOWN_2": (commander, gesture) => {commander.sendNotification("BACKGROUNDSLIDESHOW_PREV")},
							"SWIPE_UP_2": (commander, gesture) => {commander.sendNotification("BACKGROUNDSLIDESHOW_NEXT")},
							//"DOUBLE_TAP_1": (commander) => {commander.sendNotification("LOAD_NEXT_WALLPAPER", null);},
							"SWIPE_LEFT_2": (commander) => {commander.sendNotification('CX3_GET_CONFIG', {callback: (before) => {commander.sendNotification('CX3_SET_CONFIG', {monthIndex: before.monthIndex + 1,callback: (after) => {setTimeout(() => { commander.sendNotification('CX3_RESET') }, 60_000)}})}})},
							"SWIPE_RIGHT_2": (commander) => {commander.sendNotification('CX3_GET_CONFIG', {callback: (before) => {commander.sendNotification('CX3_SET_CONFIG', {monthIndex: before.monthIndex - 1,callback: (after) => {setTimeout(() => { commander.sendNotification('CX3_RESET') }, 60_000)}})}})},
				},
			}
		},
  },

@sdetweil Ok, maybe. For me the problem is solved.

@sdetweil Today everything is working normally. I don’t know what happend yesterday.

@sdetweil I’ve got the same issue since today. Any other solutions? To change the fetchtimeout doesn’t help.
